φ650X900二輥粗軋機
φ650x900二輥粗軋機(銅板帶)
φ650x900Two roll roughing mill (copper belt)
一用途
ONE.use
本機型為工作輥傳動,機架剛度大,輥系采用軋機專用FCD軸承,適用于寬板粗軋,是軋制銅及銅合金的常用設備。
This machine for working roll transmission, frame stiffness, and Department of the special rolling mill for FCD bearing and is suitable for wide plate roughing mill, is the common equipment for rolling of copper and copper alloy.
二設備組成及結構特點
TWO. Equipment composition and structure characteristics

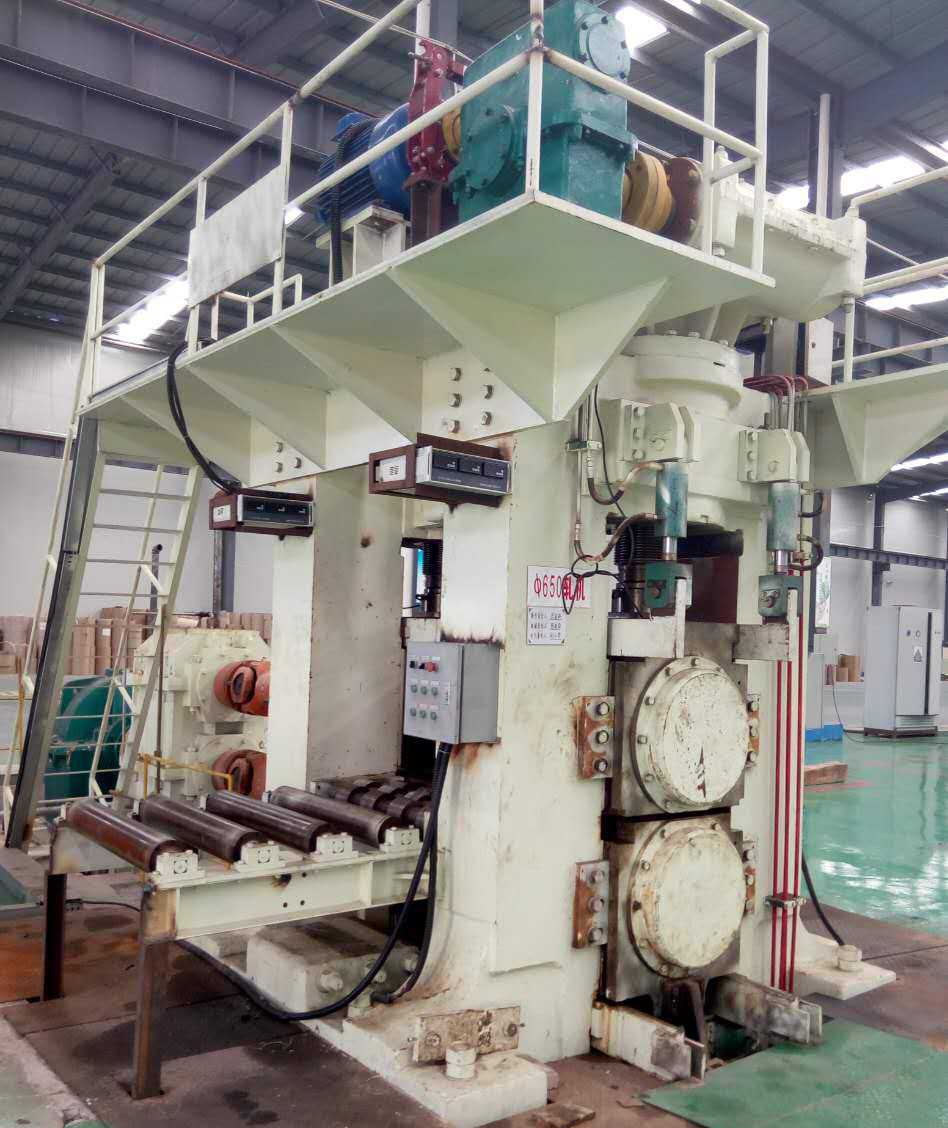

本機為二輥粗軋機,由壓下裝置、機架裝置、輥系部分、平衡裝置、主傳動、萬向軸托架、換輥裝置等組成。其主要功能是軋制帶材,滿足一定厚度。設備組成,機前機后進出料裝置、二輥軋機、工作輥液壓換輥裝置、普通液壓系統、稀油站、工藝潤滑站、電控、測厚儀、機組地腳螺栓等組成。
This machine is two roller roughing mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive, Universal shaft bracket and a roll changing device. Its main function is to roll strip, to meet certain thickness. Device composition,by after the machine before the machine import and feeding device, and device for two roll mill, work roll hydraulic, ordinary hydraulic system, thin oil station, lubrication station, electric control, measurement thickness gauge, unit anchor bolts, etc.
三技術參數
THEREE. technical parameter
軋制力: 800T 傳動形式: 工作輥傳動 Rolling force: 800T Drive form: Work roll drive
進料規格: 30x750mm 成品規格: 2-4x750mm Feeding standard:30x750mm Finished product specifications:2-4x750mm
機架端面: 420x520 rack end face:420x520
軋制速度: 35m/min Rolling speed:35m/min
工作輥規格: φ650x900 Work roll specifications: φ650x900
主電機: Z4-355-22 284KW Main motor:Z4-355-22 284KW
主減速機: ZSY630-2Z 十字萬向軸: SWC390 Main speed reducer Hardened ZSY630-2Z Cross universal shaft:SWC390
人字齒輪箱: A=650mm,稀有自潤滑 Herringbone gear box:A=650mm,Rare self lubrication
普通液壓工作壓力: 10Mpa General hydraulic pressure: 10Mpa
軋制方式: 可逆 Rolling way:reversible
電控: 控制器西門子6R80,PLC西門子 Electric control:Controller SIEMENS 6R80, PLC SIEMENS
