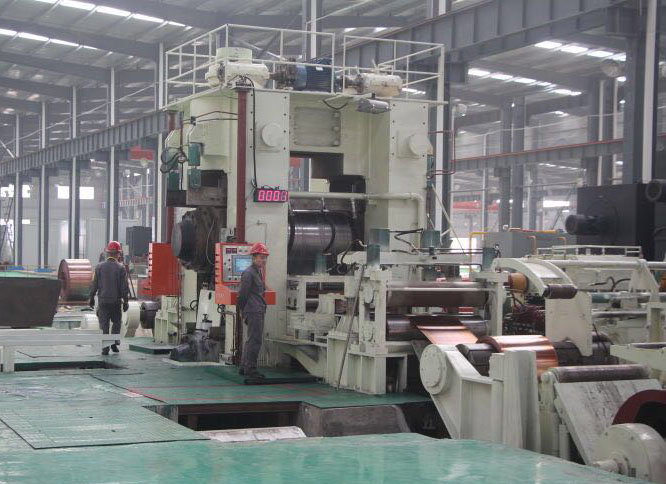

      φ380/φ950X1300四輥可逆粗軋機



      φ380/φ950x1300四輥可逆粗軋機(銅帶)
      φ380/φ950x1300Four roll reversing roughing mill (copper)

      一用途
      ONE.use
      本機型為支承輥傳動,機架剛度大,輥系采用軋機專用FCD軸承,適用于寬板粗軋,是軋制銅及銅合金的常用設備。
      The models for supporting roller drive, frame stiffness, and Department of the special rolling mill for FCD bearing and is suitable for wide plate roughing mill, is common equipment for rolling of copper and copper alloy.


      二設備組成及結構特點
      TWO. Equipment composition and structure characteristics
      本機為四輥冷軋機,由壓下裝置、機架裝置、輥系部分、平衡裝置、主傳動、萬向軸托架、換輥裝置等組成。其主要功能是軋制帶材,滿足一定厚度。設備組成,機前機后裝置、四輥軋機、支承輥液壓換輥裝置、大卷筒收卷機、液壓四棱錐卷取機、雙錐度液壓四棱錐放卷機、二輥夾送五輥矯平裝置、普通液壓系統、AGC液壓系統、稀油站、油氣潤滑系統、工藝潤滑站、電控、測厚儀、機組地腳螺栓等組成。
      This machine is four roller cold rolling mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive,Universal shaft bracket and a roll changing device. Its main function is to roll strip, to meet certain thickness. Equipment, machine front and back device, four roll mill, a supporting roller hydraulic transfer roller device, big reel that roll machine, hydraulic pyramid roll machine, hydraulic double taper frustum put volume machines, and clip sent five roll flattening device, the ordinary hydraulic system, hydraulic AGC system, thin oil station, oil air lubrication system, technological lubrication station, electric control, measurement thickness gauge, unit of anchor bolt.


      三技術參數
      THREE.technical parameter
      軋制力: 1500T 傳動形式: 工作輥傳動  Rolling force: 1500T      Drive form: Work roll drive
      進料規格: 16x1100mm 成品規格: 0.5x1100mm  Feeding standard:16x1100mm   Finished product specifications:0.5x110mm
      機架端面: 600x680    rack end face:600x680
      軋制速度: 300m/min    Rolling speed:300m/min
      工作輥規格: φ380-φ400x1300  Work roll specifications:φ380-φ400x1300
      支承輥規格: φ950x1250    Supporting roller size:φ950x1250
      主電機: Z710-3B,  1150KW  AGC壓下油缸: φ720x70  Main motor:Z710-3B  1150KW   AGC pressure cylinder: φ720x70
        十字萬向軸: SWC390   Cross universal shaft:SWC390
      齒輪箱: 組合式齒輪箱    Gear box: Combined gear box
      卷取機: 大卷筒收卷機 普通液壓工作壓力: 10Mpa  Coiling machine: A large drum winding machine  hydraulic pressure:18Mpa-21Mpa
      卷取減速機: ZSY630 AGC液壓工作壓力: 18Mpa-21Mpa  Winding speed reducer: ZSY630 General hydraulic pressure: 10Mpa
      卷取電機: Z4-400-42  430KW 軋制方式: 可逆  Winding motor:Z4-400-42  430KW   Rolling way:reversible
      小卷筒卷取機: 液壓四棱錐卷取機 電控: 控制器西門子6R80,PLC西門子  Small drum winding machine :Hydraulic four pyramid coiling machine Electric control:Controller SIEMENS 6R80, PLC SIEMENS
      卷取減速機: 硬齒面減速機    Winding speed reducer:Hardened reducer
      卷取電機: Z560-4B  750KW  Winding motor:Z560-4B 750KW
      放卷機: 雙錐度液壓四棱錐  Roll winding machine:Double taper hydraulic four pyramid
      減速機: 自制加強型  Reducer::Homemade enhanced
      卷取電機: Z4-225-21  55KW  Reel-Motor : Z4-225-21 55KW
