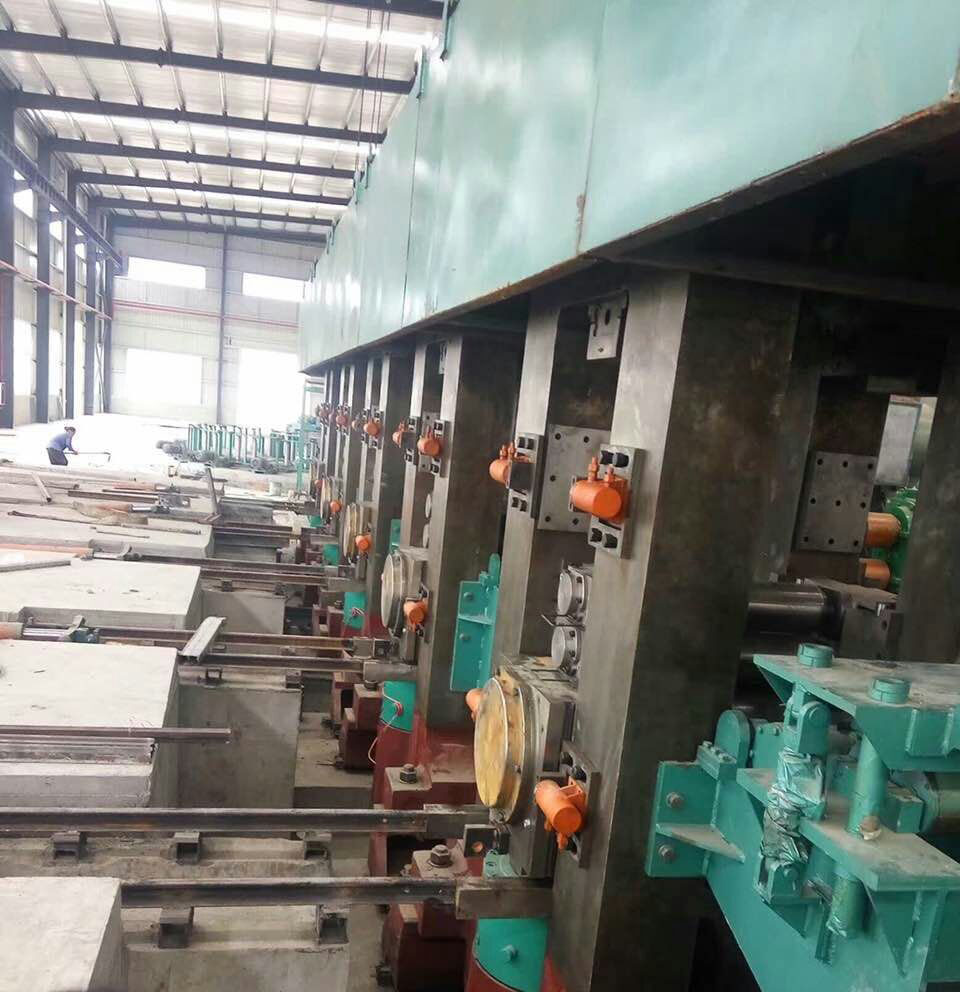

φ195/φ580x700四輥AGC五連軋冷軋機
φ195/φ580x700四輥AGC五連軋冷軋機(普碳鋼)
φ195/φ580x700 four roll AGC five tandem cold rolling mill(plain carbon steel)
一用途
ONE.use
本機型為連軋機,工作輥傳動,機架剛度大,輥系采用軋機專用FCD軸承,適用于寬板連軋,是軋制普碳鋼的常用設備。
This machineis athe tandem mill, rod transmission work, frame stiffness,FCD bearing special for rolling mill,suitable for wide plate tandem rolling,it is a common device for rolling plain carbon steel.
二設備組成及結構特點
TWO. Equipment composition and structure characteristics
本機為四輥連軋機,由壓下裝置、機架裝置、輥系部分、平衡裝置、主傳動、萬向軸托架、換輥裝置等組成。其主要功能是軋制帶材,滿足一定厚度。設備組成,上料裝置、開卷機、液壓剪、焊接平臺、進料盤式儲料活套、進料工藝平臺、1#機架、2#機架、3#機架、4#機架、5#機架、出料工藝平臺、液壓四棱錐卷取機、普通液壓系統、AGC液壓系統、稀油站、工藝潤滑站、電控、測厚儀、機組地腳螺栓等組成。
This machine is the 4-high tandem mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive, Universal shaft bracket and a roll changing device. Its main function is to roll strip, to meet certain thickness.Device composition,by feeding device,uncoiler,hydraulic shear,jig,feed disc loading loop,feed technology platform,1#rack,2#rack,3#rack,4#rack,5#rack,discharging process platform, Four pyramid hydraulic coiler, general hydraulic system, AGC hydraulic system,
thin oil station, oil and gas lubrication system, process lubrication station, electronic control unit, thickness gauge, anchor bolt etc.
三技術參數
THREE.technical parameter
軋制力: 600T 傳動形式: 工作輥傳動 Rolling force: 600T Drive form:work-roll drive
進料規格: 3x600mm 成品規格: 0.5x600mm Feeding standard:3x600 Finished product specifications:0.5x600mm
機架端面: 350x420 rack end face:350x420
軋制速度: 250m/min Rolling speed:250m/min
工作輥規格: φ195x700 Work roll specifications: φ195x700
支承輥規格: φ580x650 Supporting roller size:φ580x650
主電機: Z500-4A 710KW AGC壓下油缸: φ460x70 Main motor:Z500-4A 710KW AGC pressure cylinder: φ460x70
主減速機 硬齒面ZLY560,ZDY560 十字萬向軸: SWC235 Main speed reducer Hardened ZLY560,ZDY560 Cross universal shaft:SWC235
人字齒輪箱: A=265mm,稀有自潤滑 普通液壓工作壓力: 10Mpa Herringbone gear box:A=265mm,Rare self lubrication General hydraulic pressure: 10Mpa
卷取機: 液壓四棱錐 AGC液壓工作壓力: 18Mpa-21Mpa Coiling machine: Hydraulic four pyramid AGC hydraulic pressure:18Mpa-21Mpa
卷取張力: 8T 軋制方式: 連軋 Coiling tension: 8T Rolling way:tandem rolling
卷重: 7.5T 電控: 控制器西門子6R80,PLC西門子 Volume weight: 7.5T Electric control:Controller SIEMENS 6R80, PLC SIEMENS
卷取減速機: 自制加強型 Winding speed reducer:Homemade enhanced
卷取電機: Z4-355-22 250KW Winding motor:Z4-355-22 250KW
