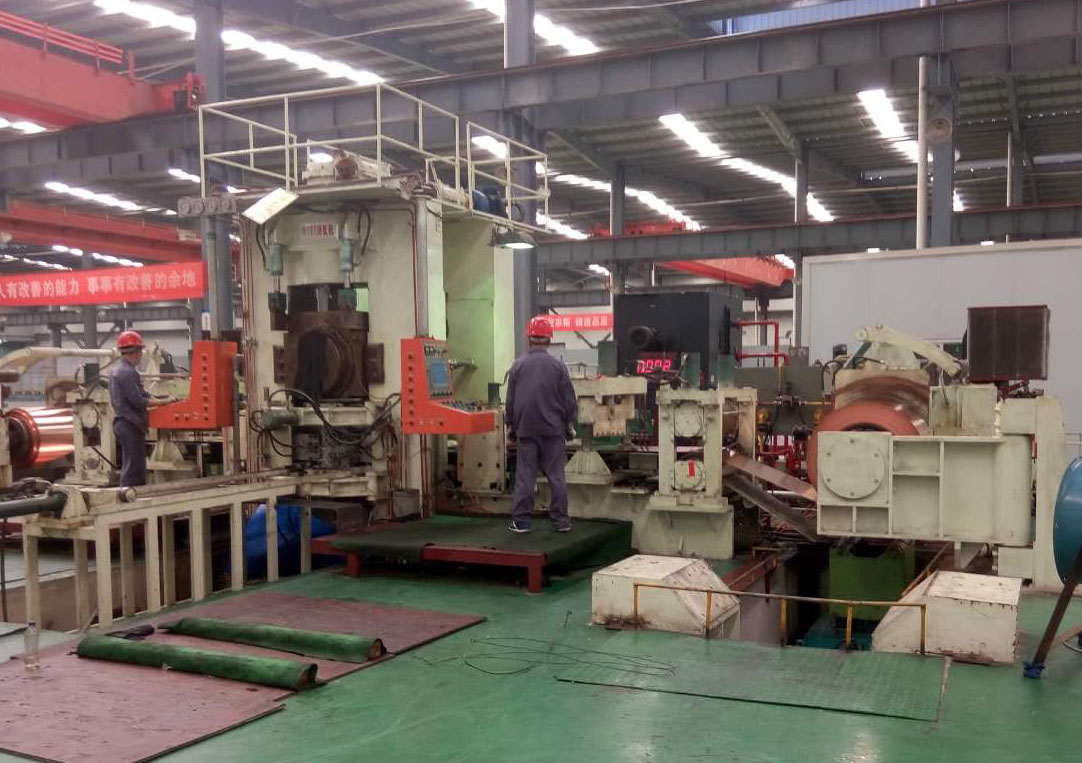

      φ180/φ250/φ650x750六輥AGC可逆冷軋機



      φ180/φ250/φ650x750六輥AGC可逆冷軋機(銅板帶)
      φ180/φ250/φ650x750six roll AGC reversing cold mill(copper belt)

      一用途
      ONE.use
      本機型為中間輥傳動,機架剛度大,輥系采用軋機專用FCD軸承,適用于寬板精軋,是軋制銅及銅合金的常用設備。
      The machine is for intermediate and transmission, frame stiffness, and Department of the special rolling mill for FCD bearing and is suitable for wide plate finishing mill, is the common equipment for rolling of copper and copper alloy.


      二設備組成及結構特點
      TWO. Equipment composition and structure characteristics
      本機為六輥精軋機,由壓上裝置、機架裝置、輥系部分、平衡裝置、主傳動、換輥裝置等組成。其主要功能是軋制帶材,滿足一定厚度。設備組成,機前機后裝置、六輥軋機、液壓四棱錐卷取機、支撐輥液壓換輥裝置、普通液壓系統、AGC液壓系統、稀油站、工藝潤滑站、電控、測厚儀、機組地腳螺栓等組成。
      This machine is six-high finishing rolling mill , which is composed of a press up device, a machine frame, a roller system, a balance device, a main drive, a roll changing device. Its main function is to roll strip, to meet certain thickness.  Device composition,by machine front and back device,six roll mill, four pyramid hydraulic coiler,hydraulic roll changing device of supporting roller,general hydraulic system, AGC hydraulic system,  thin oil station, oil and gas lubrication system, process lubrication station,  electronic control unit, thickness gauge, anchor bolt etc.


      三技術參數
      THREE.technical parameter
      軋制力: 700T 傳動形式: 中間輥傳動  Rolling force: 700T      Drive form: Intermediate roller drive
      進料規格: 2x650mm 成品規格: 0.1x650mm  Feeding standard:2x650mm   Finished product specifications:0.1x650mm
      機架端面: 420x520    rack end face:420x520
      軋制速度: 420m/min    Rolling speed:420m/min
      工作輥規格: φ180x750   Work roll specifications: φ180x750
      中間輥規格: φ250x750   Intermediate roll specifications: φ250x750
      支撐輥規格: φ650x700    Supporting roller size:φ650x700
      主電機: Z710-3B,  1150KW   AGC壓下油缸: φ520x70  Main motor:Z710-3B 1150KW   AGC pressure cylinder: φ520x70
      主減速機: 硬齒面ZDY450-2Z 十字萬向軸: SWC265  Main speed reducer Hardened ZDY450-2Z   Cross universal shaft:SWC265
      人字齒輪箱: A=600mm,稀有自潤滑 AGC液壓工作壓力: 18Mpa-21Mpa  Herringbone gear box:A=600mm,Rare self lubrication General hydraulic pressure: 10Mpa
      卷取機: 液壓四棱錐 普通液壓工作壓力: 10Mpa  Coiling machine: Hydraulic four pyramid AGC hydraulic pressure:18Mpa-21Mpa
      卷取張力: 5T    Coiling tension: 5T   Rolling way:reversible
      卷重: 10T 軋制方式: 可逆  Volume weight:10T Electric control:Controller SIEMENS 6R80, PLC SIEMENS
      卷取減速機: 硬齒面減速機 電控: 控制器西門子6R80,PLC西門子  Winding speed reducer:Hardened reducer
      卷取電機: Z4-400-41  350KW  2臺    Winding motor:Z4-400-41  350KW  two
